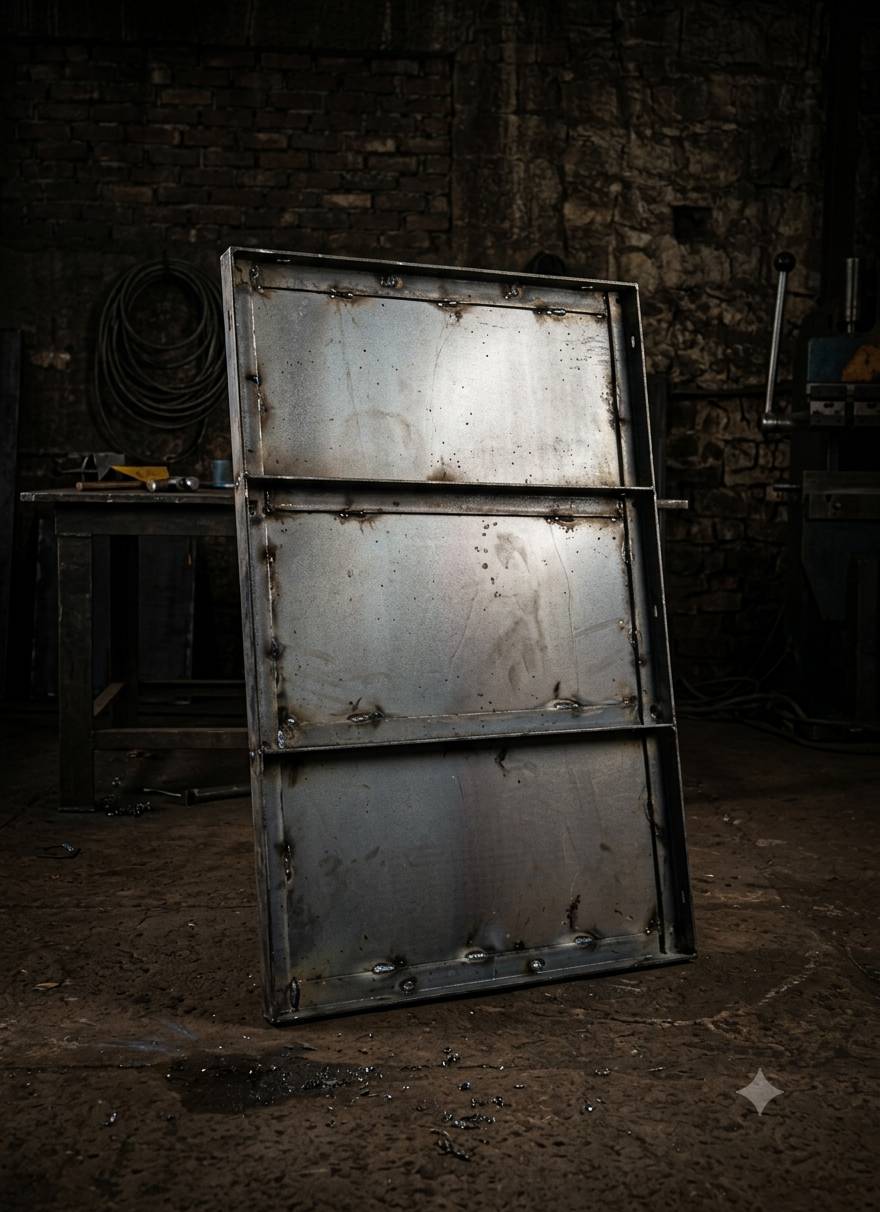

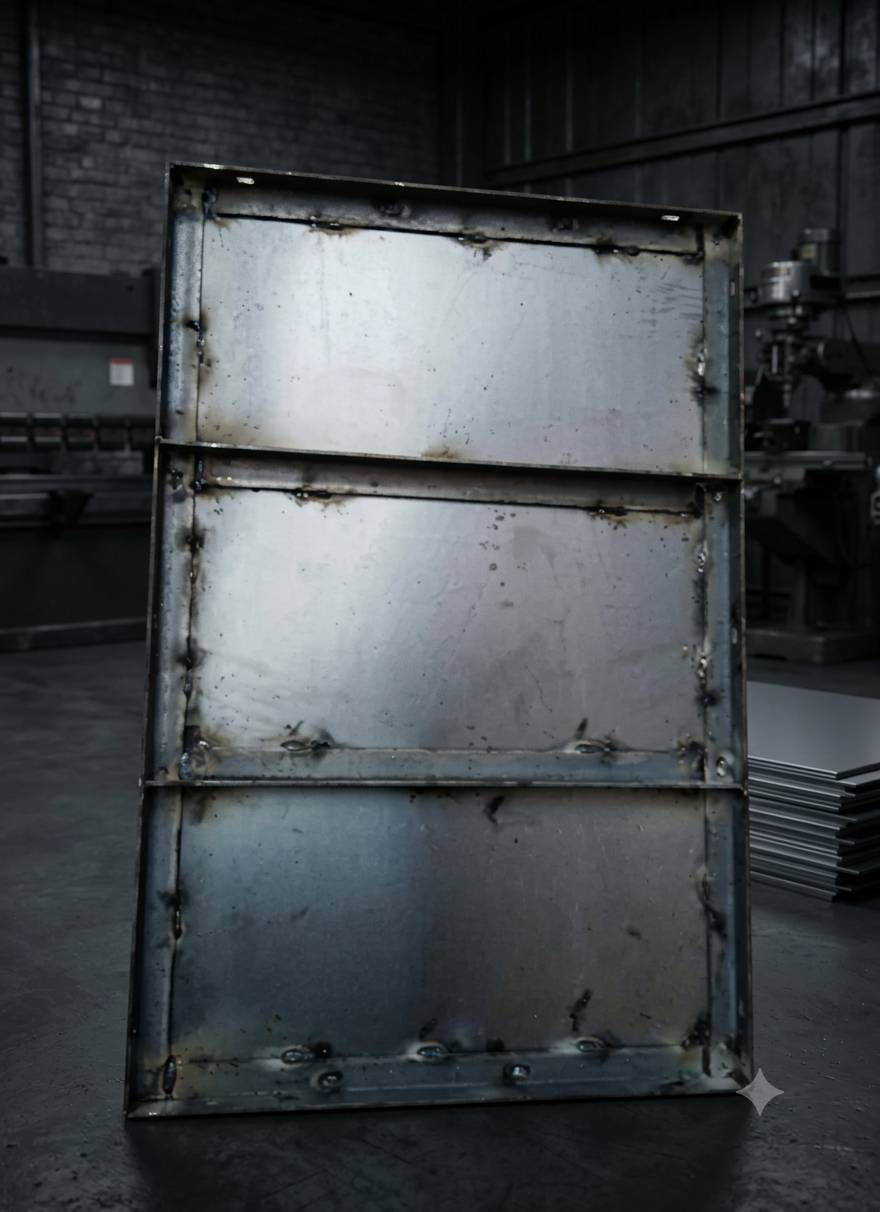

Setu Infra Systems offers premium MS Centering Plates, also known as Shuttering Plates or Formwork Plates, designed to provide reliable support during slab casting and concrete formwork applications. Manufactured using high-quality IS 1079 grade mild steel, these plates ensure excellent load-bearing capacity, durability, and dimensional stability. Their galvanized and painted finish enhances corrosion resistance, making them suitable for repeated use in residential, commercial, and infrastructure construction projects.

Every product is manufactured and sourced to IS standards for safety and durability in demanding construction environments.
Reliable logistics network for scaffolding and formwork materials to construction sites across India.
Flexible short-term and long-term rental options available in Ahmedabad, backed by well-maintained inventory.
Direct access to experienced engineers for system selection, load planning, and on-site guidance.
Mild Steel
Material
IS 1079
Sheet Grade
2.5 mm
Plate Thickness
15 – 15.3 kg
Plate Weight
900 × 600 mm
Standard Plate Size
900 × 600 mm, 900 × 450 mm, 900 × 300 mm
Available Dimensions
| Material | Mild Steel |
| Sheet Grade | IS 1079 |
| Plate Thickness | 2.5 mm |
| Plate Weight | 15 – 15.3 kg |
| Standard Plate Size | 900 × 600 mm |
| Available Dimensions | 900 × 600 mm, 900 × 450 mm, 900 × 300 mm |
| Surface Type | Color Galvanized |
| Surface Finish | Painted |
| Face Type | Plain |
| Edge Type | Angle Frame |
| Welding Type | Spot Welded / CO₂ Welded |
| Color | Blue |
| Usage | Slab Centering & Concrete Formwork |
| Angle Section | 25 × 25 × 5 mm |
| Skin Plate Thickness | 2 mm |
| Rivets | 38 Nos |
| Nail Holes | 10 Nos |
| Manufacturing Process | CO₂ Welding |
Manufactured from premium IS 1079 grade mild steel
Strong angle frame construction for higher durability
Precision CO₂ and spot welded joints
Heavy-duty load-bearing capacity
Corrosion-resistant galvanized and painted finish
Suitable for multiple reuse cycles
Easy installation and dismantling
Excellent dimensional accuracy
Designed for demanding construction environments
RCC Slab Construction
Residential Buildings
Commercial Complexes
Industrial Structures
Bridge & Infrastructure Projects
Formwork & Shuttering Systems
Concrete Slab Support
High-rise Building Construction
