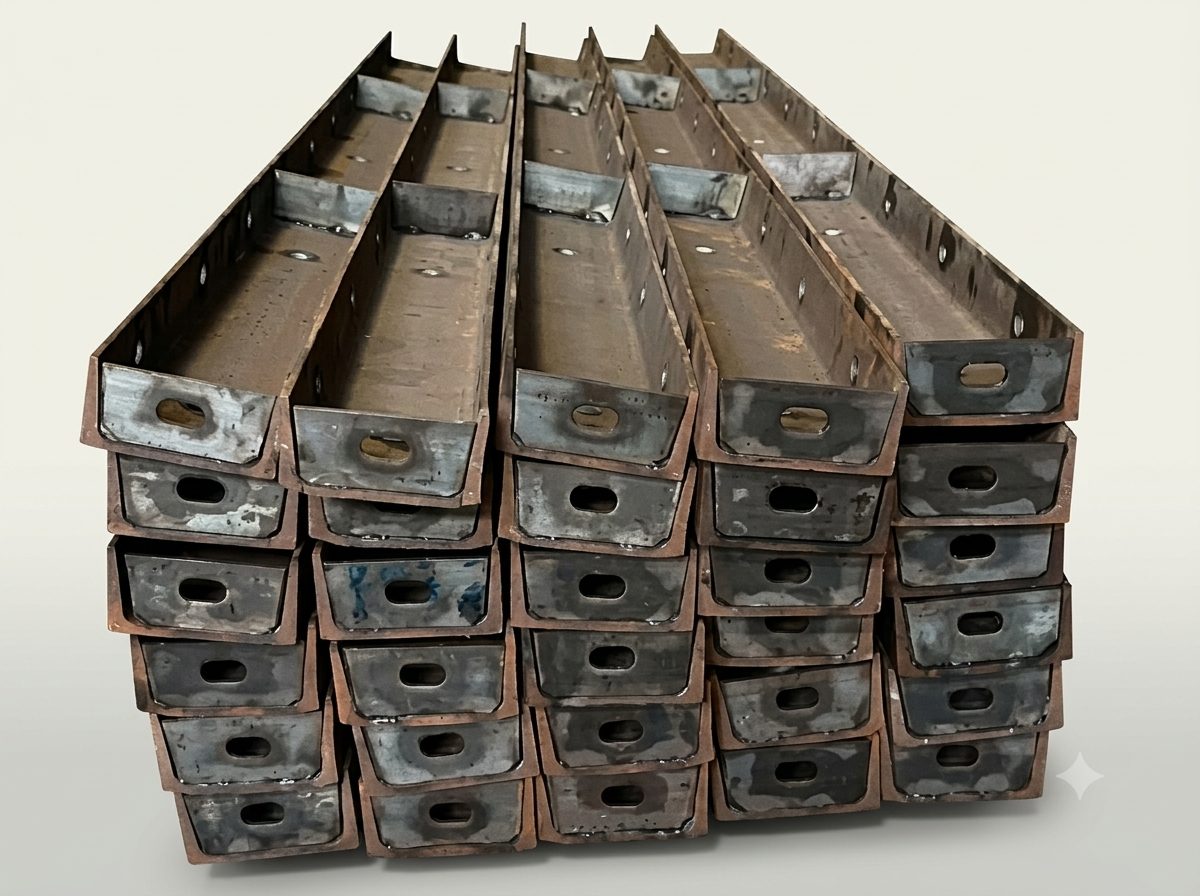

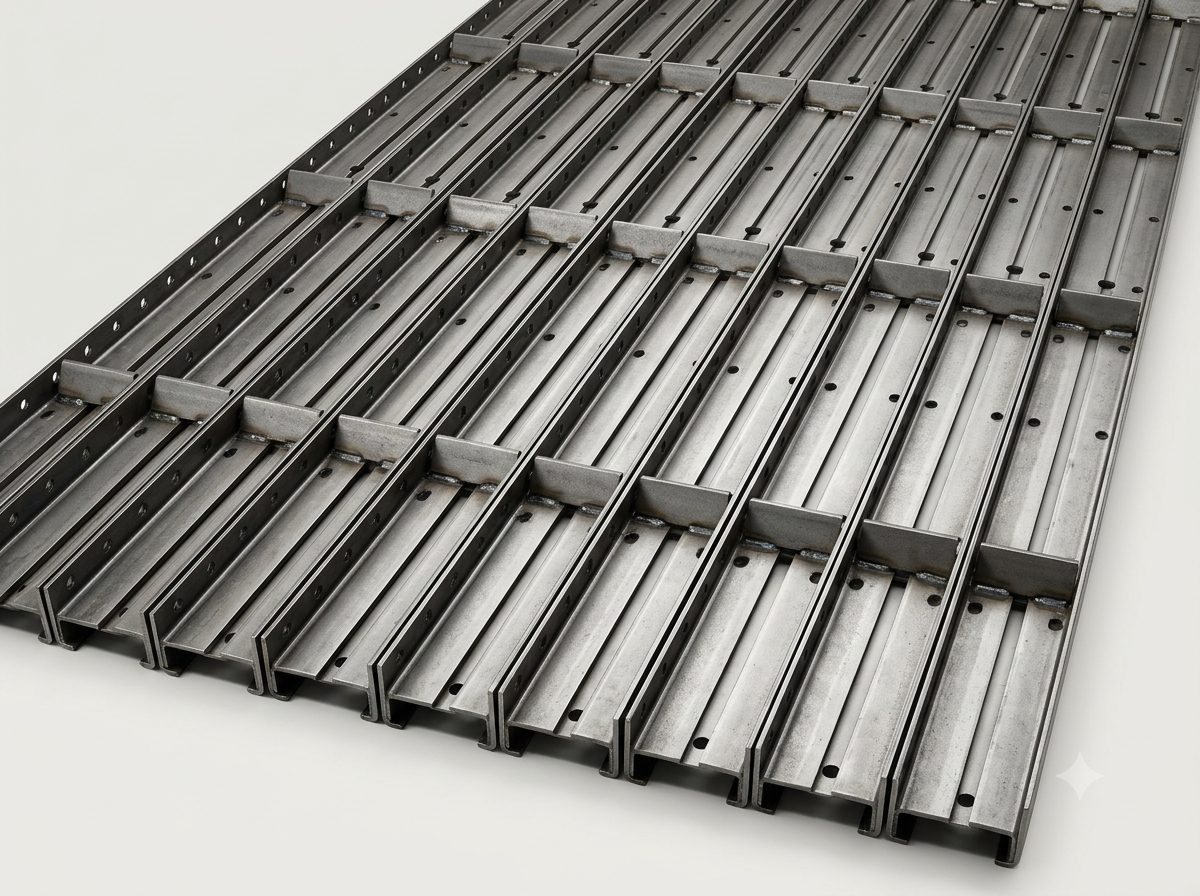

Setu Infra Systems offers MS Soldier Plates as heavy-duty vertical stiffening members used to back up wall and slab formwork panels during concrete pours. Manufactured from mild steel to IS 1079 grade with an angle-frame edge and spot-welded joints, their long, narrow profile distributes formwork pressure evenly along a panel run, and the painted finish protects against corrosion across repeated site use.
Every product is manufactured and sourced to IS standards for safety and durability in demanding construction environments.
Reliable logistics network for scaffolding and formwork materials to construction sites across India.
Flexible short-term and long-term rental options available in Ahmedabad, backed by well-maintained inventory.
Direct access to experienced engineers for system selection, load planning, and on-site guidance.
Mild Steel
Material
IS 1079
Sheet Grade
2.5 mm
Plate Thickness
2500 × 100 mm
Plate Size
Plain
Face Type
Angle Frame
Edge Type
| Material | Mild Steel |
| Sheet Grade | IS 1079 |
| Plate Thickness | 2.5 mm |
| Plate Size | 2500 × 100 mm |
| Face Type | Plain |
| Edge Type | Angle Frame |
| Welding Type | Spot Welded |
| Surface Finish | Painted |
| Plate Weight | 20 kg |
| Weight (2.5m × 100mm) | 22 kg |
| Usage | Slab |
Manufactured to IS 1079 grade mild steel
Long, narrow profile for even formwork pressure distribution
Angle-frame edge for structural rigidity
Spot-welded joints for consistent strength
Painted finish resists site corrosion
Suitable for multiple reuse cycles
Easy installation and dismantling
Consistent dimensional accuracy
Designed for demanding construction environments
Wall Formwork Support
Slab Formwork Support
RCC Wall Construction
Residential Buildings
Commercial Complexes
Industrial Structures
Bridge & Infrastructure Projects
High-rise Building Construction
