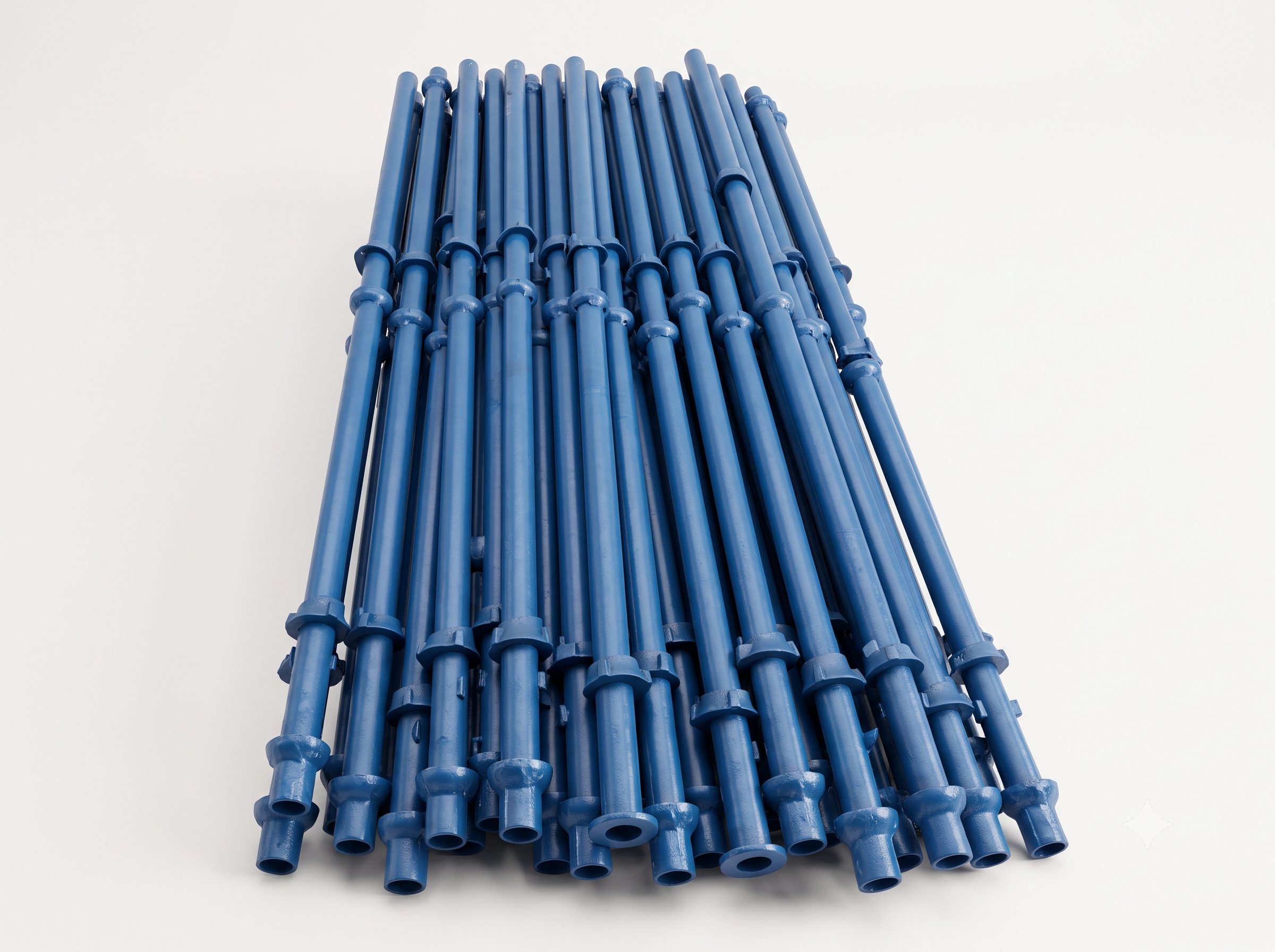

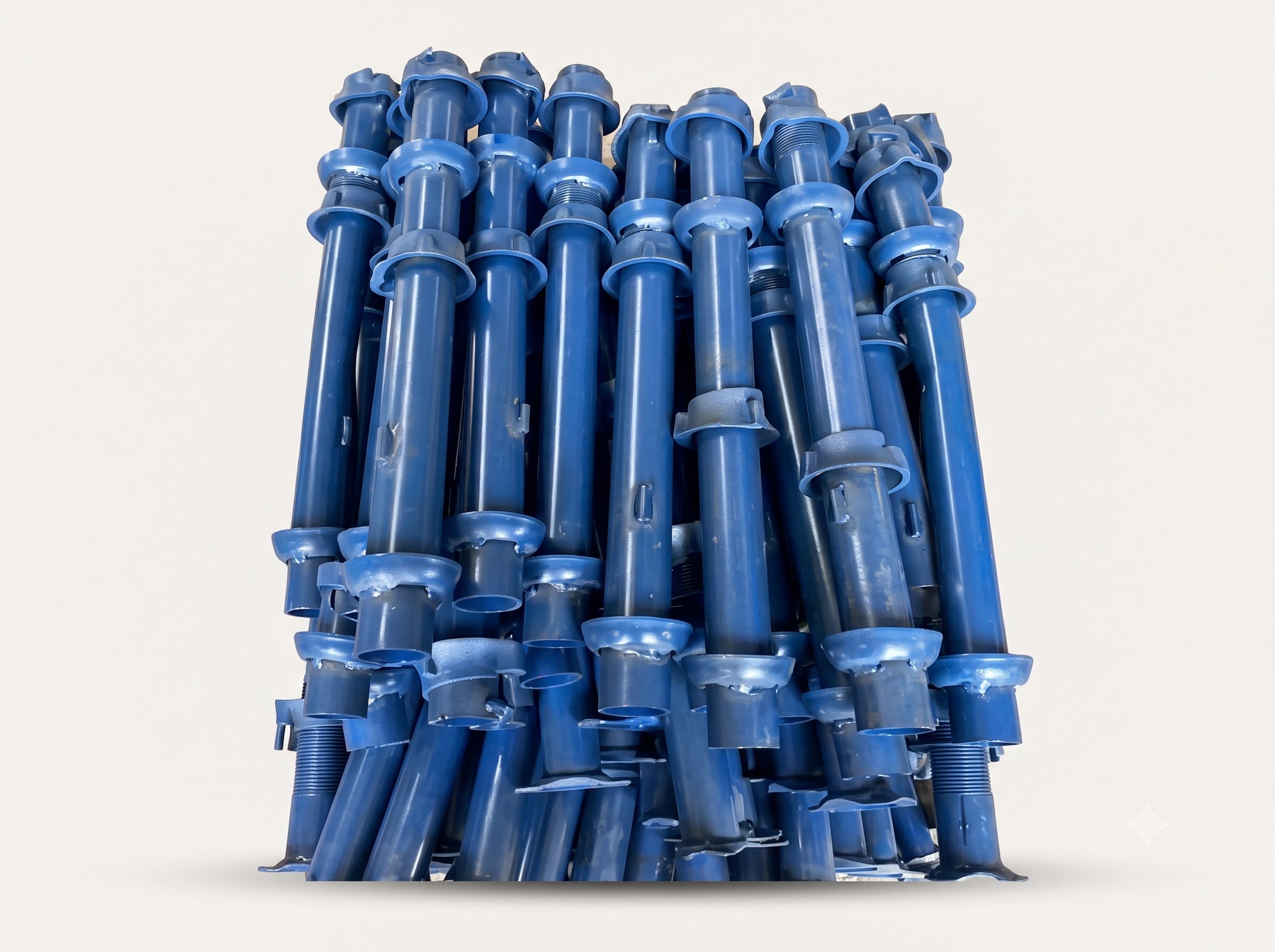

Setu Infra Systems supplies the Scaffolding Cuplock System vertical standard as an alternative cuplock specification finished to a polished color galvanized surface. Manufactured to IS 1239 grade with 5 cups spaced along its length, it connects with standard cuplock ledgers and accessories to build fast, flexible scaffolding structures for building construction.
Every product is manufactured and sourced to IS standards for safety and durability in demanding construction environments.
Reliable logistics network for scaffolding and formwork materials to construction sites across India.
Flexible short-term and long-term rental options available in Ahmedabad, backed by well-maintained inventory.
Direct access to experienced engineers for system selection, load planning, and on-site guidance.
Vertical Standard
Component Type
Mild Steel
Material
IS 1239
Material Grade
48.3 mm
Tube Diameter
2.9 mm
Tube Thickness
3 mm
Pipe Thickness
| Component Type | Vertical Standard |
| Material | Mild Steel |
| Material Grade | IS 1239 |
| Tube Diameter | 48.3 mm |
| Tube Thickness | 2.9 mm |
| Pipe Thickness | 3 mm |
| Standard Length | 2.5 m |
| Ledger Length | 2.0 m |
| Number Of Cups | 5 |
| Surface Type | Color Galvanized |
| Surface Treatment | Polished |
| Color | Blue |
| Usage | Building Construction |
Manufactured to IS 1239 grade mild steel
5 cups spaced along the standard for flexible connections
Polished, color galvanized surface for corrosion resistance
Compatible with standard cuplock ledgers and accessories
Fast, flexible scaffolding assembly
Suitable for multiple reuse cycles
Consistent dimensional accuracy
Reliable performance across building construction sites
Designed for demanding construction environments
Cuplock Scaffolding Systems
Multi-storey Building Construction
Industrial Plant Scaffolding
Bridge & Infrastructure Projects
Residential Buildings
Commercial Complexes
Access Scaffolding
Formwork Support Structures
