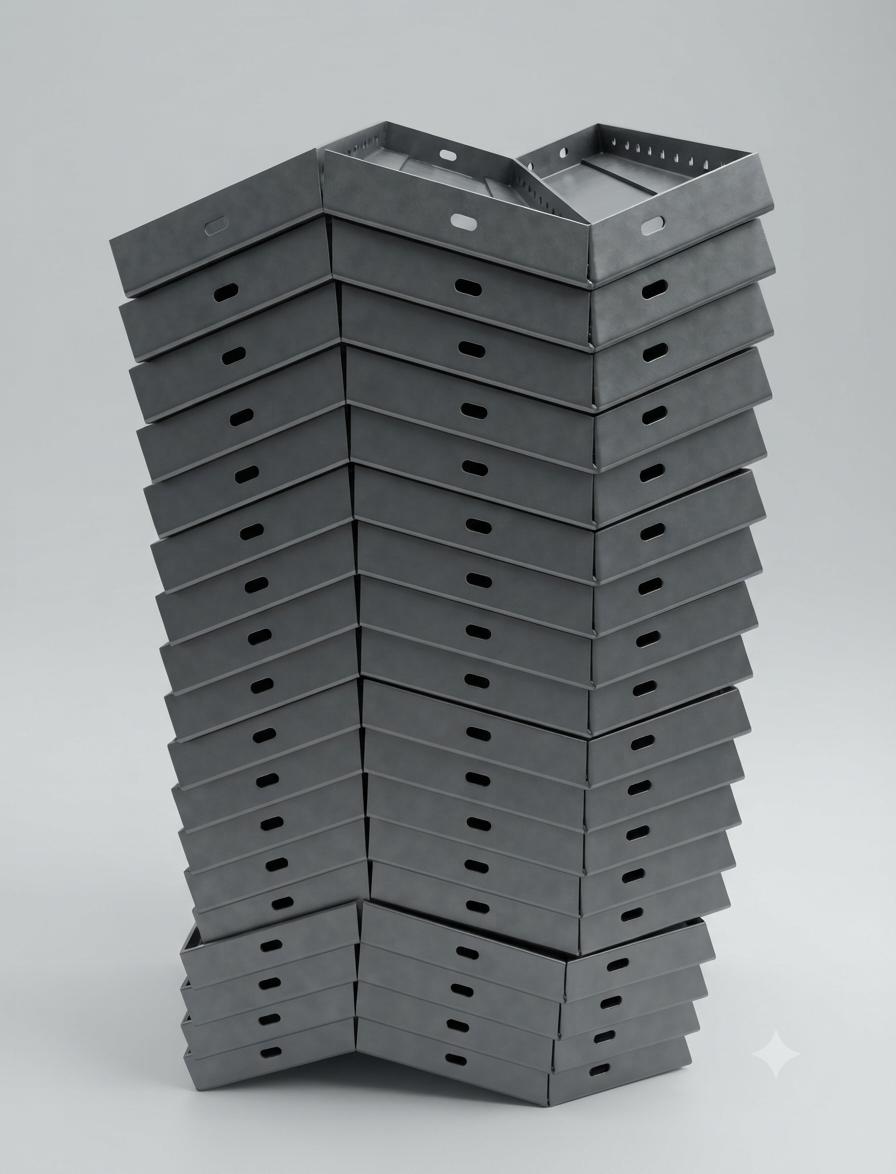

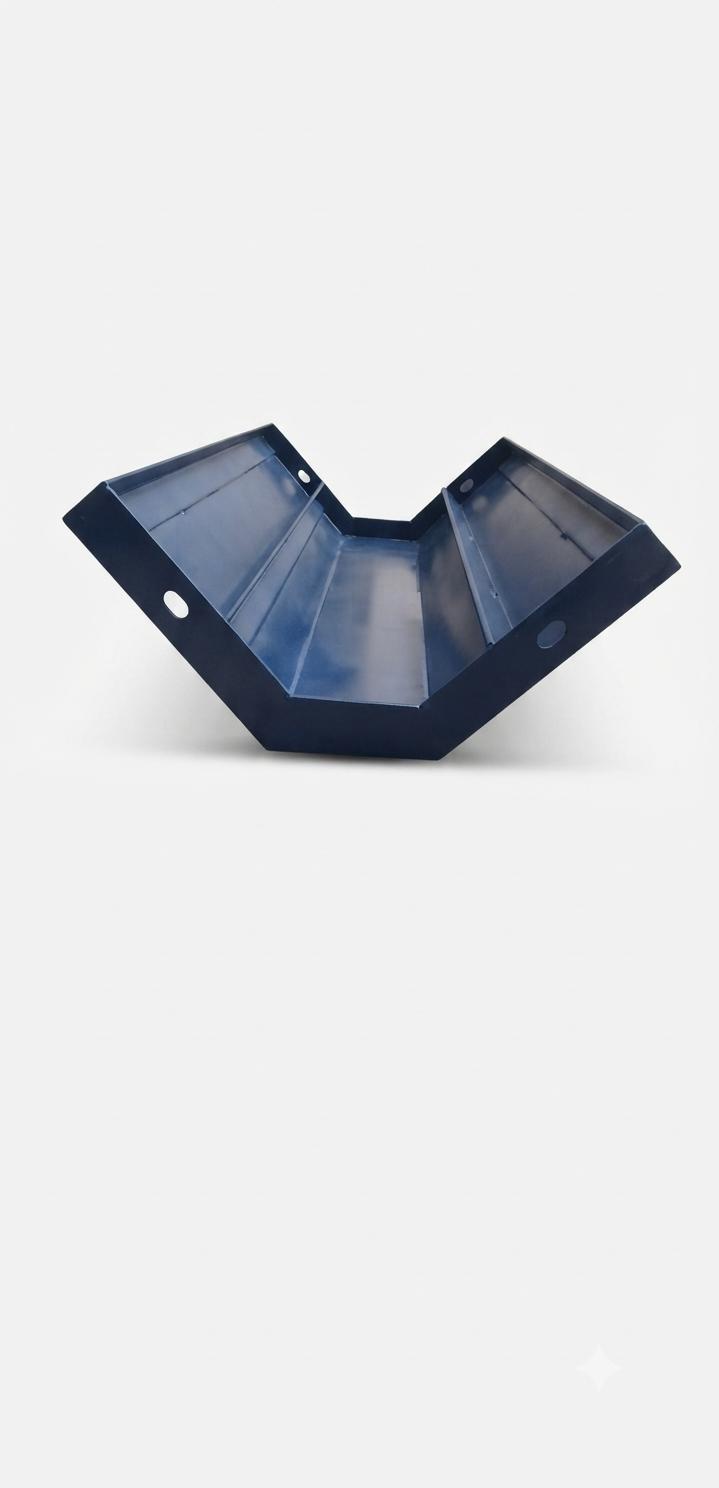

Setu Infra Systems offers the Shuttering Hunch Plate as a specialized haunch-formwork panel for creating smooth, curved corners at wall-to-floor junctions, particularly in bridge construction. Manufactured to IS 1079 grade mild steel with an angle-frame edge and spot-welded joints, it shapes concrete at these critical stress points for better load distribution across the structure.
Every product is manufactured and sourced to IS standards for safety and durability in demanding construction environments.
Reliable logistics network for scaffolding and formwork materials to construction sites across India.
Flexible short-term and long-term rental options available in Ahmedabad, backed by well-maintained inventory.
Direct access to experienced engineers for system selection, load planning, and on-site guidance.
Mild Steel
Material
IS 1079
Sheet Grade
1200 × 600 mm
Plate Size
25 × 30 Inch
Additional Dimension
1200 × 1200 × 1250 mm
Alternate Dimension
2.5 mm
Plate Thickness
| Material | Mild Steel |
| Sheet Grade | IS 1079 |
| Plate Size | 1200 × 600 mm |
| Additional Dimension | 25 × 30 Inch |
| Alternate Dimension | 1200 × 1200 × 1250 mm |
| Plate Thickness | 2.5 mm |
| Weight | 20 kg |
| Color | Blue |
| Surface Finish | Painted |
| Surface Type | Polished |
| Face Type | Plain |
| Edge Type | Angle Frame |
| Welding Type | Spot Welded |
| Usage | Beam |
Manufactured to IS 1079 grade mild steel
Shapes smooth, curved corners at wall-to-floor junctions
Angle-frame edge for structural rigidity
Spot-welded joints for consistent strength
Painted, polished finish resists corrosion
Improves stress distribution at critical structural points
Suitable for multiple reuse cycles
Particularly suited to bridge construction detailing
Designed for demanding construction environments
Bridge Construction Detailing
Wall-to-Floor Junction Formwork
Curved Corner Formwork
Residential Buildings
Commercial Complexes
Industrial Structures
Bridge & Infrastructure Projects
Formwork & Shuttering Systems
